| Category | Specification |
|---|---|
| Engine | |
| Model | Kubota V2203 |
| Type | 4-cycle, vertical, indirect injection, water-cooled diesel |
| Cylinders | 4 |
| Displacement | 134.1 cu in (2.197 L) |
| Gross Power | 45 hp (33.6 kW) |
| Net Power | 42.5 hp (31.7 kW) |
| Rated RPM | 2700 |
| Compression Ratio | 22.6:1 |
| Fuel System | Indirect injection with Bosch-type pump |
| Emissions Level | Interim Tier IV |
| Air Cleaner | Dual dry element |
| Transmission | |
| Type | Hydrostatic with 3 ranges (forward/reverse) |
| Clutch | Dry, single |
| Max Speed | 14.9 mph (24.0 km/h) |
| Cruise Control | Standard |
| Hydraulics | |
| Type | Open center |
| Pump Flow | 25.0 gpm (94.5 L/min) |
| Steering Flow | 6.6 gpm (25.0 L/min) |
| Hydraulic Pressure | 2700 psi (186 bar) |
| Hydraulic Capacity | 12.2 gal (46.2 L) |
| PTO | |
| Type | Independent |
| PTO Horsepower | 32.0 hp (23.9 kW) |
| PTO Speed | 540 rpm at 2590 engine rpm |
| Dimensions & Weight | |
| Wheelbase | 72.5 in (1840 mm) |
| Overall Length | 237 in (6010 mm) |
| Overall Width | 72.5 in (1840 mm) |
| Height (ROPS) | 95.1 in (2410 mm) |
| Ground Clearance | 12.3 in (310 mm) |
| Turning Radius | 134.4 in (3400 mm) |
| Operating Weight | 7173 lbs (3255 kg) |
| Tires | |
| Front (Industrial) | 27×10.5-15 |
| Rear (Industrial) | 15×19.5 |
| Front (Turf) | 27×10.5LLx15 |
| Rear (Turf) | 16.5Lx16.1 |
| Loader (TL1000A) | |
| Max Lift Height | 113.9 in (2890 mm) |
| Clearance Dumped | 90 in (2280 mm) |
| Dump Reach | 16.8 in (420 mm) |
| Dump Angle | 45° |
| Rollback Angle | 48° |
| Digging Depth | 4 in (100 mm) |
| Lift Capacity at Max Height | 2848 lbs (1290 kg) |
| Breakout Force | 4530 lbs (2055 kg) |
| Bucket Width | 72 in (1820 mm) |
| Bucket Capacity | 15.5 cu ft (0.44 cu m) |
| Loader Weight | 1040 lbs (470 kg) |
| Bucket Weight | 336 lbs (153 kg) |
| Backhoe (BT1000A) | |
| Digging Depth | 121 in (3070 mm) |
| 2-Foot Flat Bottom | 120 in (3040 mm) |
| 8-Foot Flat Bottom | 102.2 in (2596 mm) |
| Loading Height | 91.3 in (2310 mm) |
| Swing Arc | 180° |
| Reach from Pivot | 160.9 in (4080 mm) |
| Bucket Force | 5825 lbs (2642 kg) |
| Dipperstick Force | 3779 lbs (1715 kg) |
| Bucket Widths | 12″, 16″, 18″, 24″, 30″, 36″ (300 mm to 910 mm) |
| Backhoe Weight | 1660 lbs (753 kg) |
| Capacities | |
| Fuel Tank | 11.9 gal (45.0 L) |
| Engine Oil | 8.7 qts (8.2 L) |
| Coolant | 6.9 qts (6.5 L) |
| Front Axle | 7.4 qts (7.0 L) |
| Hydraulic System | 12.2 gal (46.2 L) |
| Electrical | |
| Voltage | 12 V |
| Alternator | 45 amps |
| Battery | 80 AH |

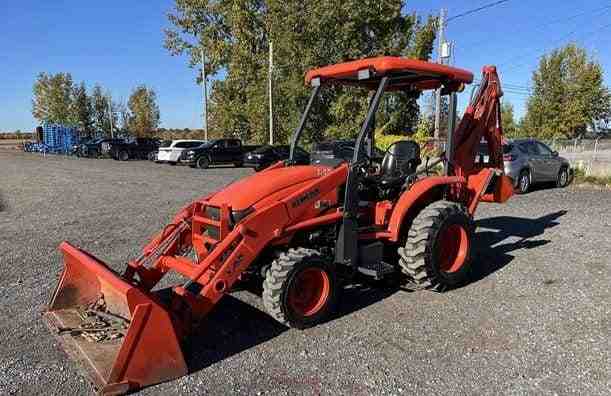

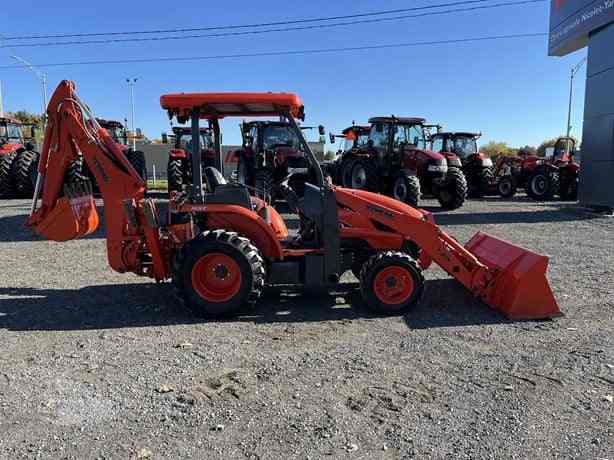

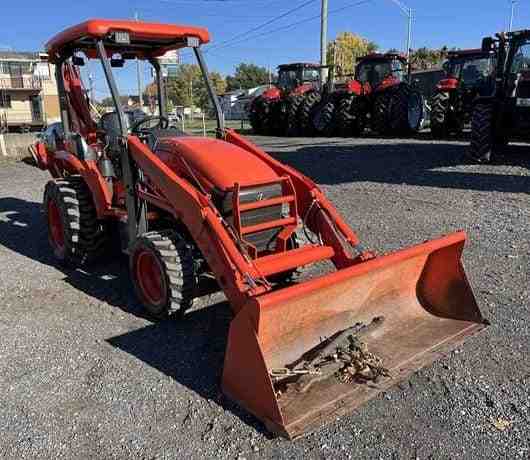

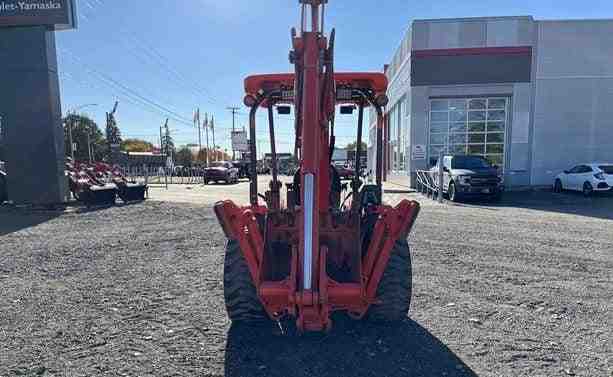

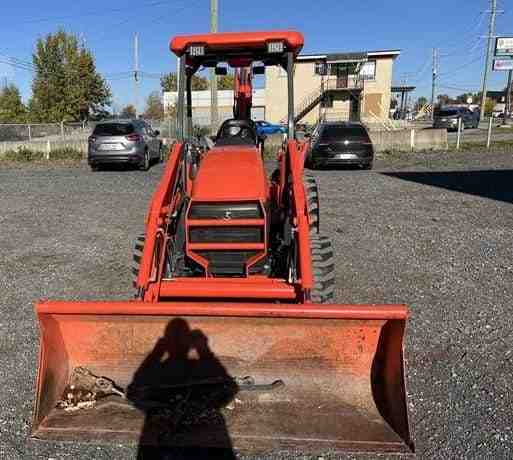

2015 KUBOTA L45 Loader Backhoes Front Loader Mini Skid Steer Mini Dumper Crawler 4×4 Wheel Drive
