| Category | Specification |
|---|---|
| Engine | |
| Engine Model | KDI 2504 TCR (by Kohler) |
| Fuel Type | Diesel |
| Gross Power | 48 hp (35.8 kW) |
| Net Power | 45.4 hp (33.9 kW) |
| Displacement | 2.5 L (152,559.4 cu in) |
| Power @ RPM | 2200 rpm |
| Torque @ RPM | 1500 rpm |
| Cooling System | Water-cooled |
| Starter Motor | 2 kW |
| Alternator | 100 amps |
| Operational | |
| Operating Weight | 14,552.8 lbs (6,601 kg) |
| Fuel Capacity | 30.4 gal (115 L) |
| Engine Oil Capacity | 3 gal (11.2 L) |
| Cooling System Capacity | 3.2 gal (12.1 L) |
| Hydraulic System Capacity | 31.2 gal (118 L) |
| Hydraulic Pump Flow | 17.5 gal/min (66 L/min) |
| Auxiliary Hydraulic Flow | 50.2 gal/min (190 L/min) |
| Operational Voltage | 12 V |
| Performance | |
| Travel Speed (Low) | 1.7 mph (2.6 km/h) |
| Travel Speed (High) | 2.9 mph (4.6 km/h) |
| Gradeability | 30% |
| Tractive Effort | 134.49 lbs (61 kg) |
| Dimensions | |
| Max Digging Depth | 12 ft 2 in (3.72 m) |
| Max Dump Height | 16 ft 6 in (5.06 m) |
| Max Reach Along Ground | 22 ft 6 in (6.86 m) |
| Max Digging Reach | 23 ft (7.01 m) |
| Max Vertical Wallcut Depth | 9 ft 8 in (2.95 m) |
| Height to Top of Cab | 8 ft 11 in (2.72 m) |
| Tail Swing Radius | 3 ft 9 in (1.14 m) |
| Track Gauge | 6 ft 1 in (1.85 m) |
| Width Over Tracks | 7 ft 7 in (2.3 m) |
| Length of Track on Ground | 7 ft 7.6 in (2.33 m) |
| Ground Clearance | 1 ft 1.8 in (0.35 m) |
| Transport Length | 19 ft 2 in (5.83 m) |
| Transport Height | 8 ft 11 in (2.72 m) |

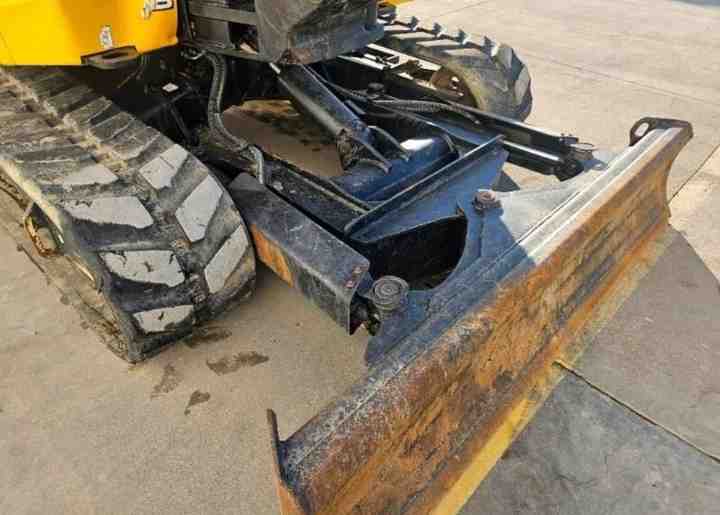

| Blade | |
| Blade Width | 91 in (2,320 mm) |
| Blade Height | 18.7 in (473 mm) |
| Blade Dig Depth | 1.6 ft (0.49 m) |
| Blade Reach in Front of Tracks | 2.1 ft (0.64 m) |
| Approach Angle | 27.8° |
| Boom & Arm | |
| Boom Swing Left | 55° |
| Boom Swing Right | 60° |
| Bucket Rotation | 188° |
| Dipper Rotation | 114° |
| Bucket Tearout Force | 12,836.6 lbs (57.1 kN) |
| Dipper Tearout Force | 11,218 lbs (49.9 kN) |
| Slew Speed | 10 rpm |
| Undercarriage | |
| Number of Track Rollers per Side | 5 |
| Track Tension | Grease |

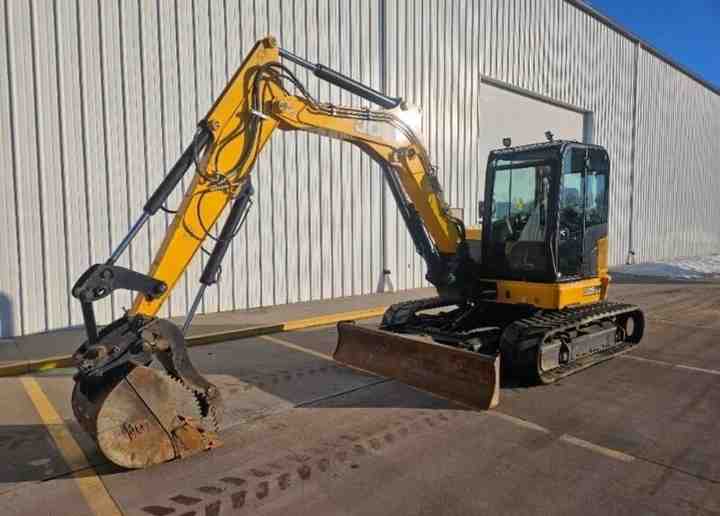

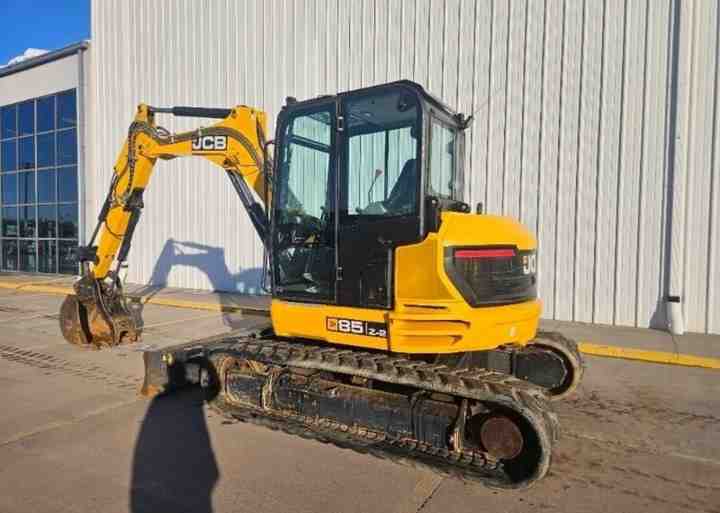

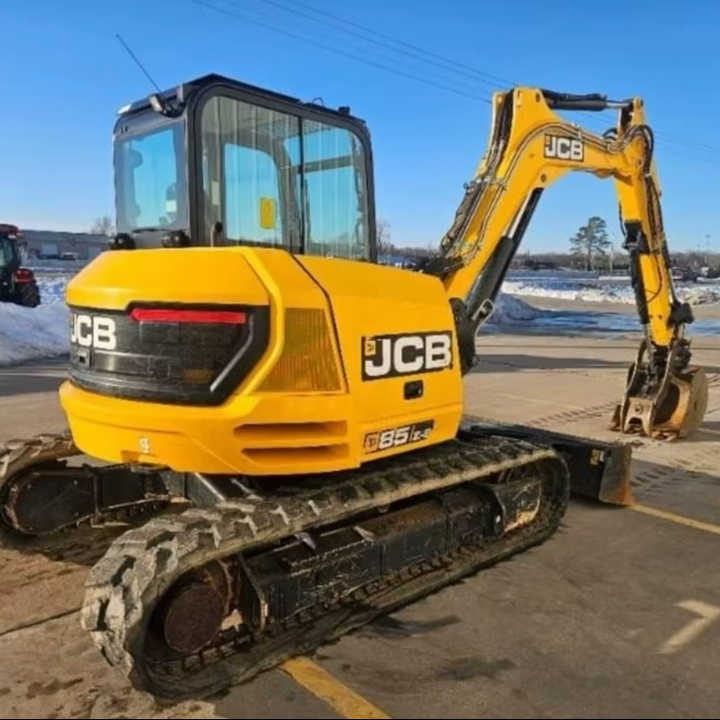

2023 JCB 85Z-1 Crawler Excavator Core Components Kohler Engine Eaton Hydraulic Cylinder JCB Gear Pump PLC Bearing Motor KOMTRON
