| Category | Specification |
|---|---|
| Engine | |
| Engine Model | FPT S8000 (8045.45.748) |
| Power | 72 kW (97 hp) @ 2200 rpm |
| Max Torque | 420 Nm @ 1300 rpm |
| Displacement | 3.9 L |
| Emission Level | Tier 3 |
| Cylinders | 4 |
| Bore/Stroke | 104 mm x 115 mm |
| Transmission | |
| Type | Powershuttle, 4-speed manual |
| Max Travel Speed | 39.2 km/h |
| Hydraulics | |
| System Type | Double gearing |
| Pump Flow | 145 L/min @ 2000 rpm |
| Max Pressure | 210 bar |
| Dimensions & Weight | |
| Operating Weight | 8,290 kg |
| Length (Transport) | 5,990 mm |
| Width (Transport) | 2,277 mm |
| Height (Transport) | 2,830 mm |
| Overall Height | 3,800 mm |
| Wheelbase | 2,175 mm |
| Backhoe Performance | |
| Max Digging Depth | 5.892 m |
| Max Reach at Ground | 7.024 m |
| Max Working Height | 6.405 m |
| Bucket Swing Angle | 204° |
| Loader Performance | |
| Max Dumping Height | 2.745 m |
| Discharge Height | 3.580 m |
| Discharge Angle | 45° |
| Load Capacity at Ground | 5,425 kg |
| Load Capacity at Max Height | 3,425 kg |
| Capacities | |
| Fuel Tank | 129 L |
| Hydraulic Oil | 107 L |
| Engine Oil | 8.6 L |
| Transmission Oil | 20 L |
| Front Axle Oil | 8.9 L |
| Rear Axle Oil | 17.1 L |
| Coolant | 20 L |

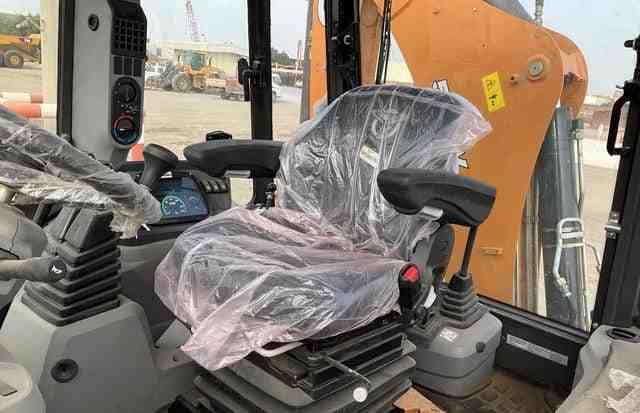

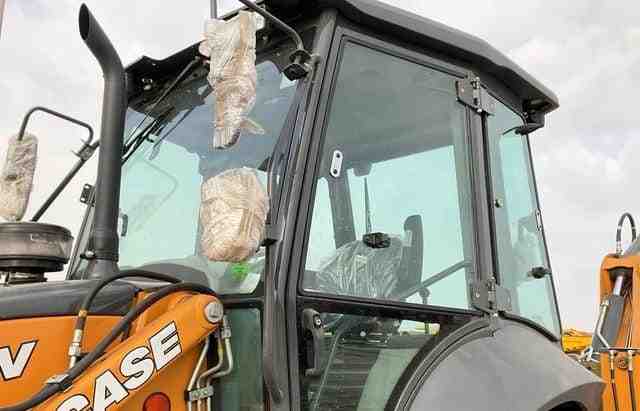

| Cabin & Features | |
| ROPS/FOPS Certified | Yes |
| Air Conditioning | Optional |
| Seat | Adjustable with suspension |
| Controls | Ergonomic joystick |
| Visibility | 360-degree |
| Tires | |
| Front Tires | 12.5-18 |
| Rear Tires | 16.9-28 |

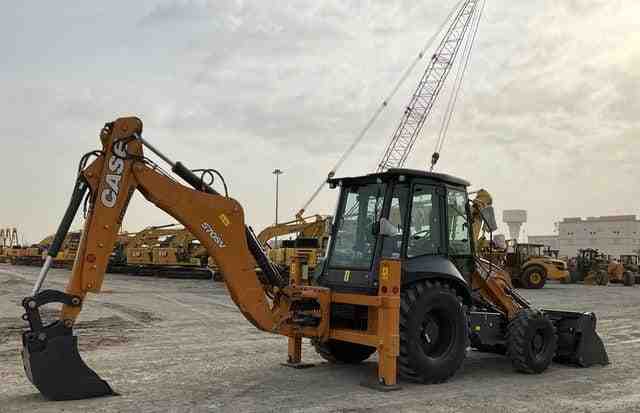

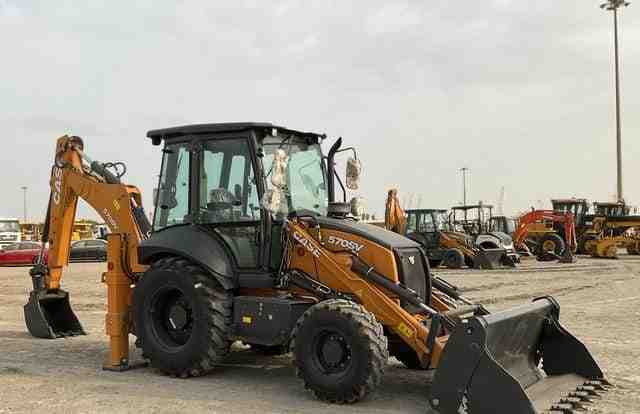

2024 Case 570SV 4×4 Backhoe Loader
