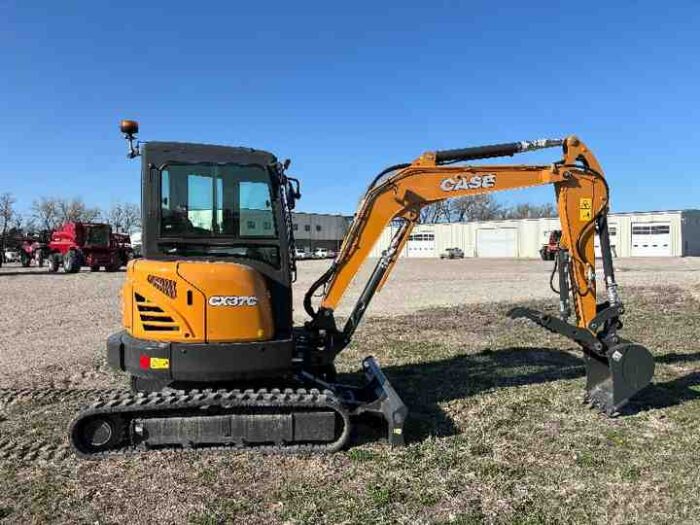

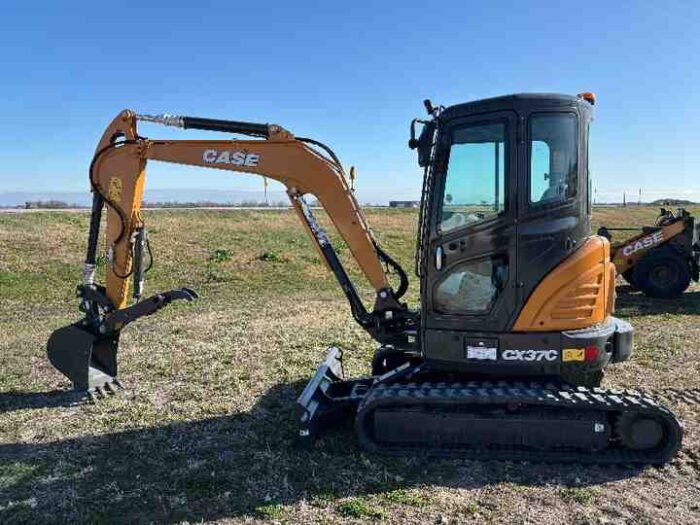

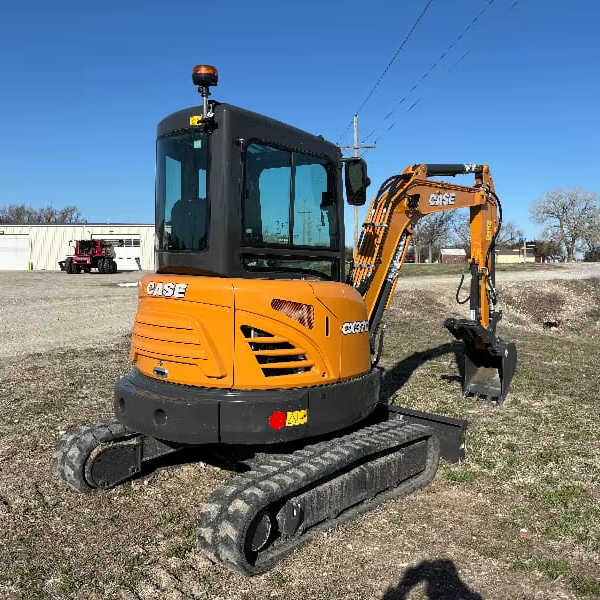

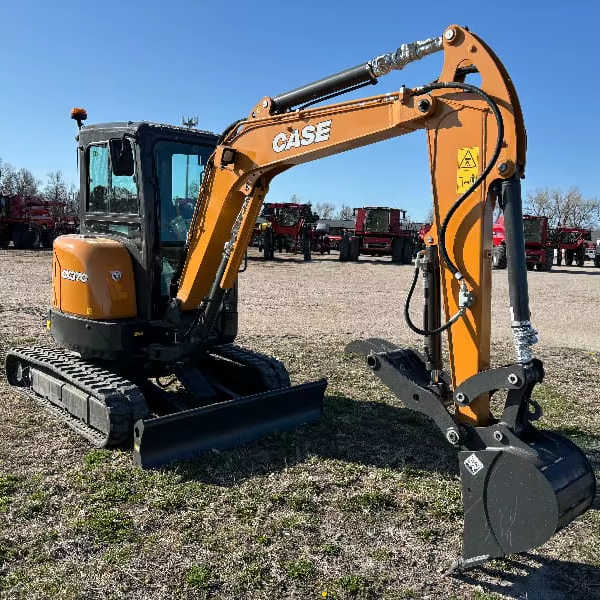

2024 CASE CX37C Crawler Excavator with Yanmar Engine

Category	Specification
Engine
Model	Yanmar 3TNV88F-ESHYB
Type	3-cylinder, water-cooled diesel
Displacement	1,642 cm³ (100.2 cu in)
Gross Power	24.4 hp (18.2 kW) @ 2,200 rpm
Net Power	23.7 hp (17.7 kW)
Max Torque	69.5 lb-ft (94.1 Nm) @ 1,200 rpm
Emissions Level	Tier 4 Final
Hydraulic System
Main Pump Flow	2 × 37.4 L/min (19.8 gal/min)
Gear Pump Flow	23.1 L/min
Auxiliary Circuit Flow	60.5 L/min (both 1st and 2nd circuits)
Relief Pressure	230 bar (3,270 psi)
Performance
Slew Speed	9.5 rpm
Travel Speed (Low/High)	2.3 / 4.4 km/h (1.4 / 2.7 mph)
Max Drawbar Pull	6,835 lb (30.4 kN)
Gradeability	30°
Ground Pressure	0.34 kgf/cm² (4.9 psi)
Dimensions
Operating Weight	Cab: 3,760 kg; Canopy: 3,620 kg
Transport Weight	Cab: 3,660 kg; Canopy: 3,520 kg
Max Length	4,790 / 4,815 mm (standard/long arm)
Max Height	2,500 mm
Max Width	1,740 mm
Ground Clearance	290 mm
Tail Swing Radius	870 mm
Digging Capabilities
Max Digging Depth	3.135 m (10 ft 3 in)
Max Reach (Ground)	5.2 m (17 ft 1 in)
Max Dump Height	3.43 m (11 ft 3 in)
Bucket Breakout Force	6,901.7 lb (30.7 kN)
Arm Digging Force	3,800–4,390 lb
Capacities
Fuel Tank	40 L (10.6 gal)
Hydraulic Tank	60 L (15.9 gal)
Engine Oil	6.7 L (1.8 gal)
Radiator	5.5 L (1.5 gal)
Electrical
Voltage	12 V
Alternator	55 A
Battery	1 × 12 V × 70 Ah
Undercarriage
Track Width	300 mm
Track Rollers per Side	4
Optional Equipment	Long arm (1.6 m), air conditioning, steel tracks, hydraulic quick coupler, additional counterweight, 2nd auxiliary circuit, beacon, travel alarm, radio with USB
