| Category | Specification |
|---|---|
| Engine | |
| Engine Model | Cat® C2.8T (turbo) |
| Gross Power (SAE J1995) | 74.3 hp (55.4 kW) |
| Net Power (ISO 9249) | 73 hp (54.4 kW) |
| Net Power (SAE 1349) | 73.5 hp (54.8 kW) |
| Peak Torque (SAE J1995) | 221 lb-ft (300 N·m) |
| Displacement | 171 in³ (2.8 L) |
| Bore | 4.3 in (110 mm) |
| Stroke | 3.5 in (90 mm) |
| Hydraulic System | |
| Standard Flow | 23 gal/min (86 L/min) @ 3,500 psi (24,130 kPa) |
| High Flow | 30 gal/min (113 L/min) @ 3,500 psi (24,130 kPa) |
| High Flow XPS | 30 gal/min (113 L/min) @ 4,061 psi (28,000 kPa) |
| Hydraulic Power (Standard) | 46.4 hp (34.6 kW) |
| Hydraulic Power (High) | 60.9 hp (45.4 kW) |
| Hydraulic Power (XPS) | 70.7 hp (52.7 kW) |
| Operating Specs | |
| Operating Weight | 9,578 lb (4,345 kg) |
| Rated Operating Capacity | 2,499 lb (1,133 kg) @ 35% tipping load |
| Tipping Load | 7,140 lb (3,238 kg) |
| Breakout Force (Lift) | 5,895 lb (2,674 kg) |
| Breakout Force (Tilt) | 6,746 lb (3,060 kg) |
| Dimensions | |
| Vehicle Width | 65.9 in (1,675 mm) with 320 mm tracks |
| Vehicle Width | 69.3 in (1,760 mm) with 400 mm tracks |
| Length with Bucket | 135 in (3,430 mm) |
| Length without Bucket | 110.2 in (2,800 mm) |
| Height to Top of Cab | 83.3 in (2,115 mm) |
| Ground Clearance | 8.3 in (212 mm) |
| Bucket Pin Height (Max) | 124 in (3,150 mm) |
| Clearance at Max Dump | 95.4 in (2,424 mm) |
| Max Overall Height | 155.2 in (3,941 mm) |
| Turning Radius (Bucket) | 82.9 in (2,105 mm) |
| Performance | |
| Travel Speed (1-Speed) | 5.7 mph (9.2 km/h) |
| Travel Speed (2-Speed) | 9.1 mph (14.7 km/h) |
| Service Capacities | |
| Fuel Tank | 25.1 gal (95 L) |
| Hydraulic System | 9.7 gal (36.8 L) |
| Hydraulic Tank | 6.9 gal (26 L) |
| Engine Crankcase | 2.2 gal (8.2 L) |
| Cooling System | 3 gal (11.5 L) |
| Cab | |
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |

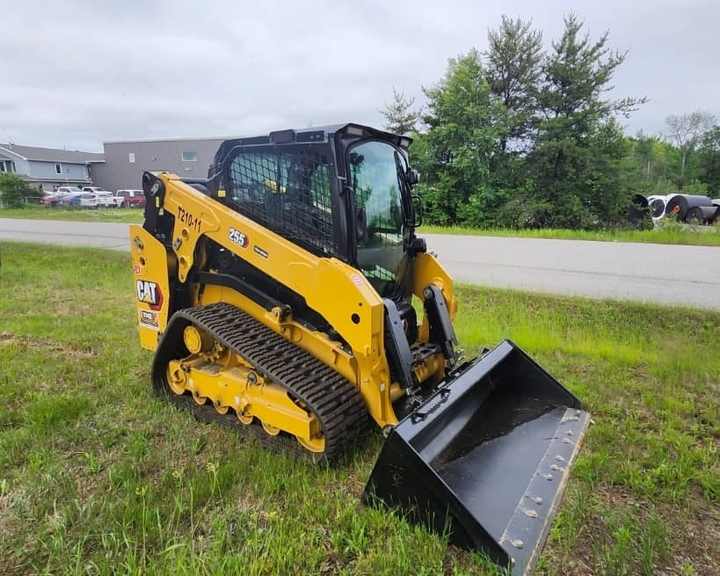

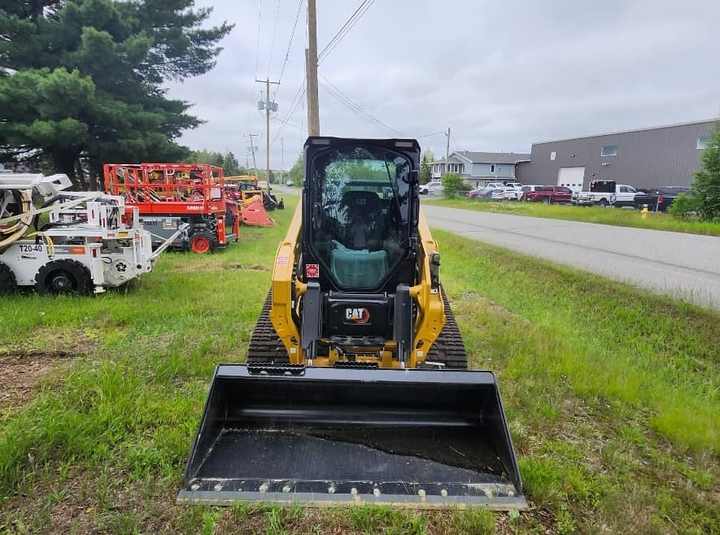

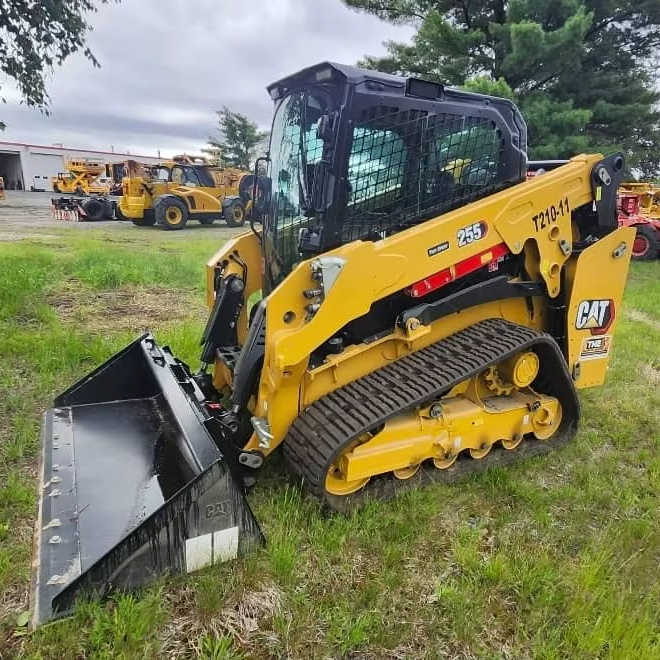

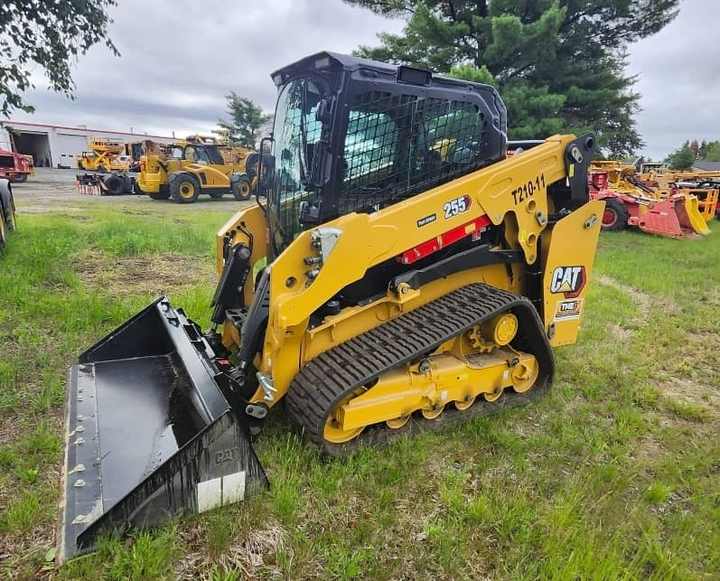

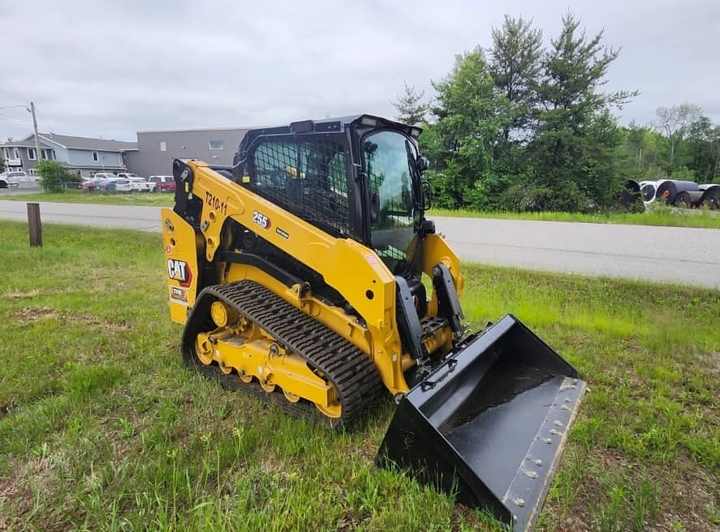

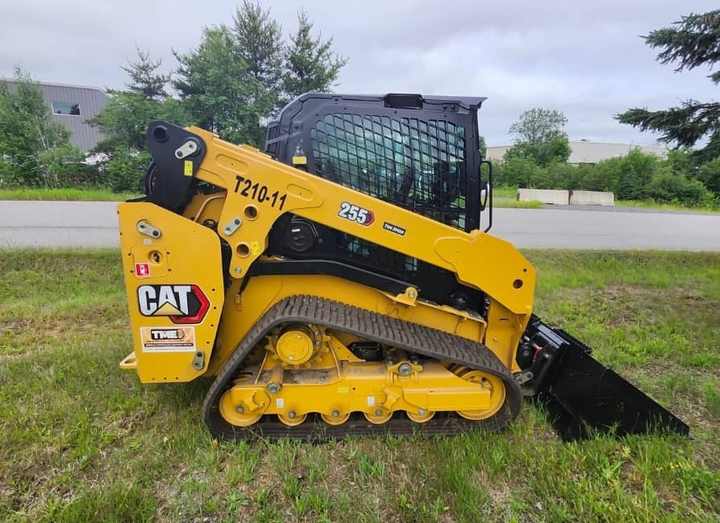

2024 Caterpillar CAT 255 Compact Track Loader Skid Steer
