| Category | Specification |
|---|
| Engine | |
| Engine Model | Perkins 404F-E22T |
| Gross Power | 49 hp (36.3 kW) |
| Emissions Compliance | Tier 4 Final (no DEF or DPF required) |
| Displacement | 2.2 liters |
| Max Torque | 165 Nm @ 1800 rpm |
| Transmission & Drive | |
| Transmission Type | Hydrostatic |
| Drive System | Rubber tracks |
| Travel Speed | 7.5 km/h (4.7 mph) |
| Dimensions | |
| Overall Length | 3.57 m (141 in) |
| Overall Width | 1.8 m (71 in) |
| Transport Height | 2.2 m (88 in) |
| Height with Bucket Raised | 3.43 m (135 in) |
| Weight | |
| Operating Weight | 4,262 kg (9,396 lbs) |
| Loader Performance | |
| Bucket Type | General Purpose (GP) shovel |
| Bucket Capacity | 0.37 m³ (0.5 cu yd) |
| Loader Dump Height | 2.21 m (87 in) |
| Loader Breakout Force | 2,254 kg (4,970 lbs) |
| Backhoe Performance | |
| Max Dig Depth | 2.55 m (8 ft 4 in) to 3.08 m (10 ft 1 in) with extending dipper |
| Max Reach at Ground Level | 3.38 m (11 ft 1 in) to 3.91 m (12 ft 10 in) |
| Bucket Capacity | 0.08 m³ |
| Hydraulics | |
| Auxiliary Hydraulics Flow | 26.4 GPM (100 L/min) |
| Hydraulic Pressure | 180 bar |
| Operator Features | |

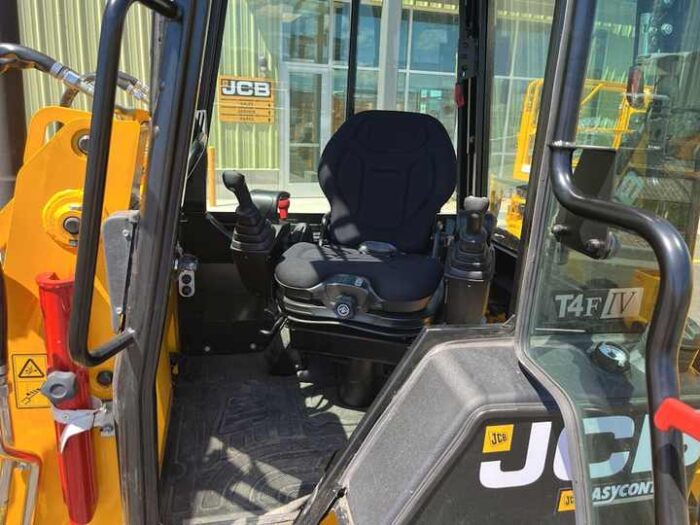

| Cab Type | Enclosed cab with air-conditioning and heater |
| Controls | Seat-mounted joystick controls; ISO/SAE pattern changeover |
| Visibility | Steep-nosed hood and front-mounted loader arms for enhanced visibility |
| Additional Features | |
| Quick Hitch | Universal skid steer quick hitch compatible with most attachments |
| Stabilizers | Equipped with outrigger stabilizers |
| Fuel Tank Capacity | 45 liters (11.8 gallons) |
| Telematics | LiveLink Lite telematics system |
