| Category | Specification |
|---|---|
| Engine | |
| Model | JCB EcoMAX 444 TCA EU Stage IV / EPA Tier 4 Final |
| Type | 4-stroke, 4-cylinder inline, turbocharged, intercooled diesel |
| Displacement | 4.4 L (268.6 cu in) |
| Rated Power | 81 kW (109 hp) @ 2200 rpm |
| Max Torque | 516 Nm (380.6 lb-ft) @ 1500 rpm |
| Alternator | 150 amps |
| Performance | |
| Max Dig Depth | 4.41 m (14.47 ft) |
| Max Reach (Ground Level) | 7.79 m (25.56 ft) |
| Max Cutting Height | 6.79 m (22.28 ft) |
| Max Loading Height | 5.06 m (16.61 ft) |
| Max Vertical Wall Depth | 2.36 m (7.75 ft) |
| Hydraulics | |
| System Type | Electronically controlled with 2 variable displacement piston pumps + twin gear pumps |
| Max Flow Rate | 158.4 L/min (41.9 gal/min) |
| Relief Valve Pressure | 280 bar (4061 psi) |
| Slew System | |
| Slew Speed | 8.9 rpm |
| Slew Torque | 27.0 kNm |
| Slew Motor | Axial piston type |
| Slew Brake | Hydraulic + spring-applied disc parking brake |
| Dimensions | |
| Operating Weight | 11,050 kg (24,376 lb) |
| Wheelbase | 2.65 m (8.7 ft) |
| Overall Width | 2.42 m (95.28 in) |
| Ground Clearance | 298 mm (0.98 ft) |
| Height to Top of Cab | 2.99 m (9.81 ft) |
| Rear Tailswing Radius | 1.2 m (1200 mm) |
| Mobility | |
| Travel Speed | Up to 40 km/h (24.9 mph) |
| Steering Modes | 2WS / 4WS / Crab Steer (PLUS/PRO: + Reverse Steer) |
| Capacities | |
| Fuel Tank | 157 L (41.5 gal) |
| Hydraulic System | 190 L (50.2 gal) |
| Engine Oil | 14 L (3.7 gal) |
| Cooling System | 28 L (7.4 gal) |
| Attachments | |
| Bucket Capacity Range | 0.1 – 0.4 m³ (0.13 – 0.52 yd³) |
| Compatible Attachments | Tiltrotator (JCB Raptor), breakers, trenchers, planers, stump grinders |
| Undercarriage Options | |
| Standard | Rear dozer blade |
| PLUS Model | Any configuration of dozer or stabilizers |
| PRO Model | Front dozer or stabilizers + rear skid steer hitch |
| Lighting | |
| Standard | Halogen work lights |
| PLUS/PRO Models | LED work lights |
| Cab Features | |

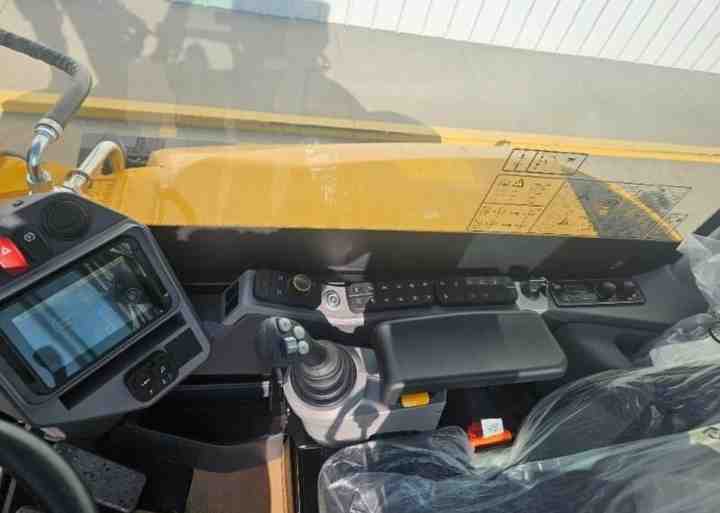

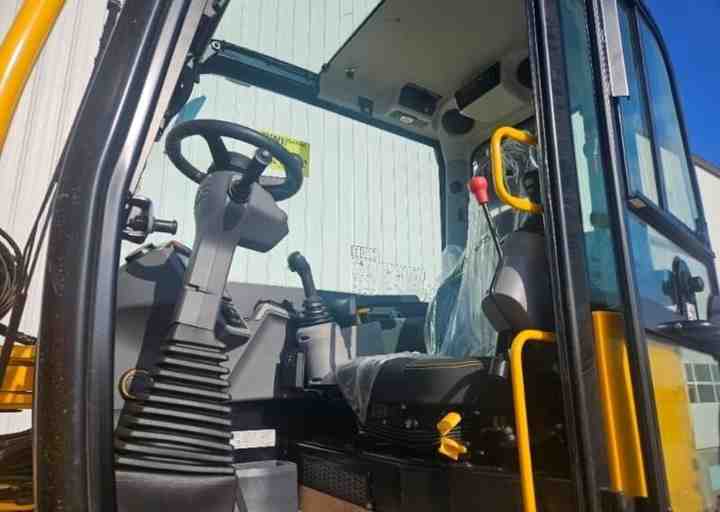

| Standard | JCB CommandPlus cab, 7″ display, climate control, auto-idle |
| PLUS/PRO Models | Deluxe air suspension seat (heated), Smooth Ride System (SRS) |

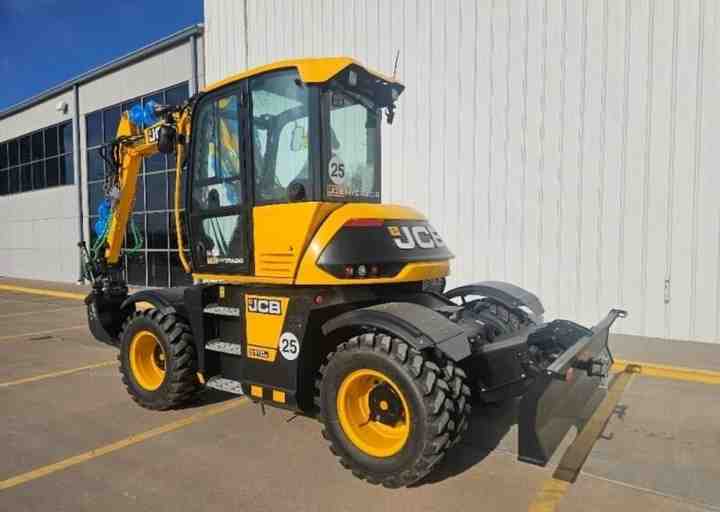

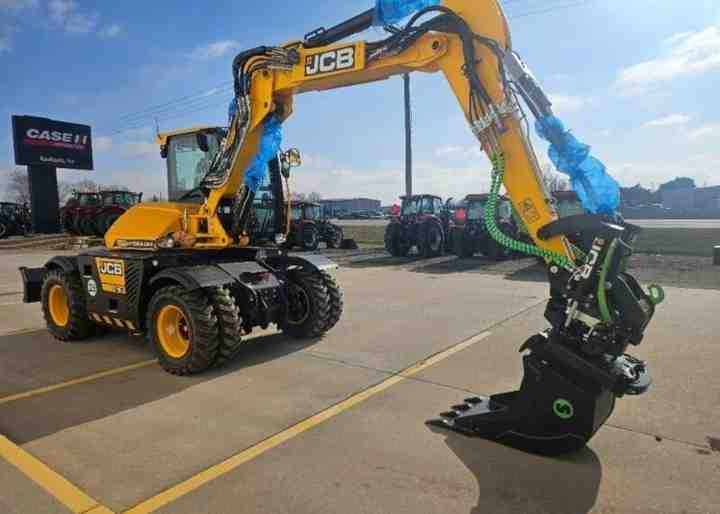

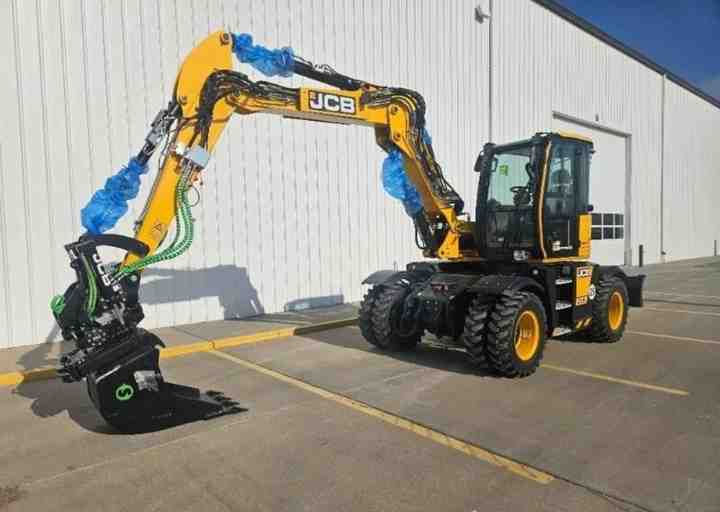

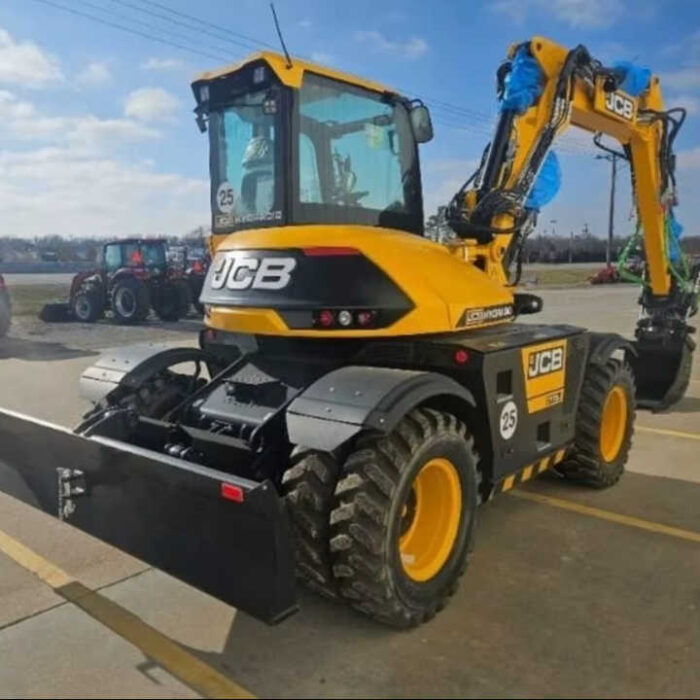

2024 JCB HYDRADIG 110W Wheel Excavator Kohler Engine Eaton Hydraulic Cylinder KPI Motor Pump Gear PLC Bearing Core Included
