| Specification | Value |
|---|---|
| Engine Model | Kubota D1803-CR-TE4 |
| Engine Power (Net) | 38.9 HP (29.1 kW) @ 2200 rpm |
| Engine Power (Gross) | 40.4 HP (30.2 kW) @ 2200 rpm |
| Displacement | 1826 cc (111.4 cu in) |
| Max Digging Depth | 3.42 m (11 ft 2.7 in) |
| Max Digging Height | 5.34 m (17 ft 6.6 in) |
| Max Digging Radius | 5.54 m (18 ft 2.1 in) |
| Rated Travel Speed | 2.9 km/h (Low) / 5.0 km/h (High) |
| Bucket Capacity | 0.14 m³ (approximate) |
| Bucket Breakout Force | 4325 kgf (9535 lbf) |
| Arm Breakout Force | 1865 kgf (4112 lbf) |
| Operating Weight | 4630 kg |
| Overall Length | 5.085 m (16 ft 8.2 in) |
| Overall Width | 1.7 m (5 ft 6.9 in) |
| Overall Height | 2.485 m (8 ft 1.8 in) |
| Ground Clearance | 330 mm (12.99 in) |
| Fuel Tank Capacity | 64 liters |
| Hydraulic Oil Reservoir | 42 liters |
| Hydraulic System Capacity | 74 liters |
| Auxiliary Hydraulic Flow | 65 l/min (AUX1), 37 l/min (AUX2) |
| Pump Capacity | 92.4 l/min |
| Swing Speed | 9.2 rpm |
| Boom Swing Angle | 70° (Left) / 55° (Right) |

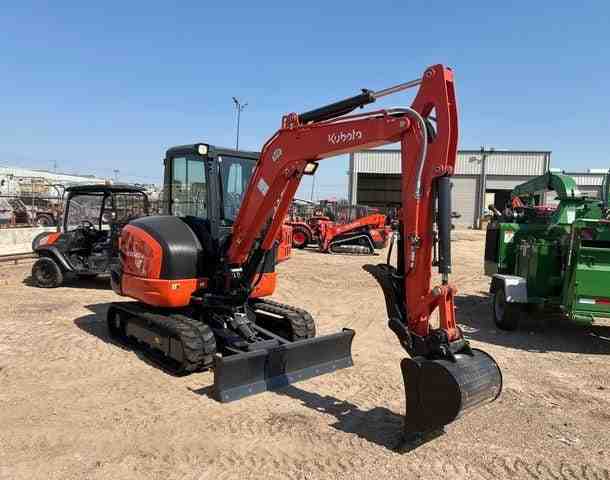

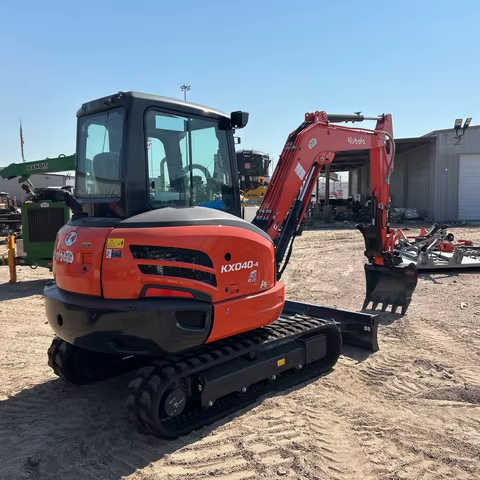

2024 Kubota KX040-4R3A Mini Excavator
