| Category | Specification |
|---|---|
| Engine | |
| Model | V2607-CR-TE4 |
| Type | Diesel, Turbocharged |
| Emissions | Tier 4 compliant |
| Cylinders | 4 |
| Displacement | 159.7 cu in (2,615 cc) |
| Bore × Stroke | 3.5 × 4.4 in (87 × 110 mm) |
| Rated Speed | 2,700 rpm |
| Gross Horsepower | 64.0 hp (47.7 kW) |
| Net Horsepower | 61.3 hp (45.7 kW) |
| Peak Torque | 166 ft-lb (225.1 Nm) |
| Compression Ratio | 19.0:1 |
| Firing Order | 1-3-4-2 |
| Performance | |
| Rated Operating Capacity (50% tipping load) | 1,950 lbs (885 kg) |
| Tipping Load | 3,900 lbs (1,770 kg) |
| Bucket Breakout Force | 4,839 lbf (2,195 kgf) |
| Lift Arm Breakout Force | 3,858 lbf (1,750 kgf) |
| Lift Arm Path | Vertical |
| Traction Force | 7,339 lbs (3,329 kg) |

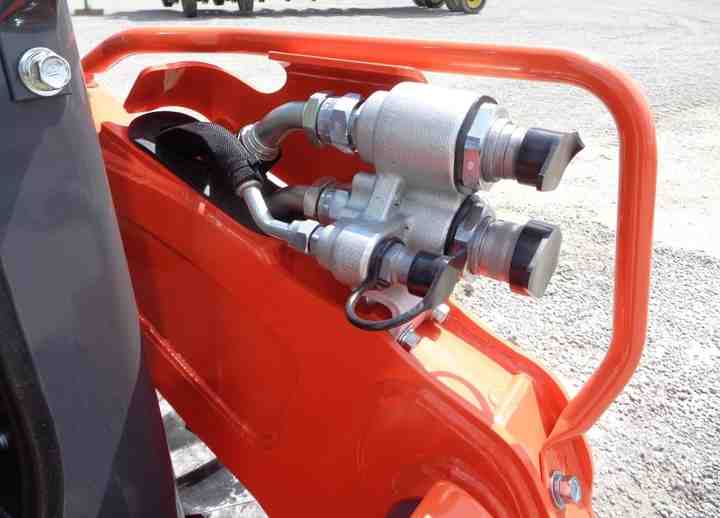

| Hydraulics | |
| Standard Flow | 18.0 GPM (68.0 LPM) |
| High Flow (Optional) | 28.0 GPM (106.0 LPM) |
| Hydraulic Pressure | 3,271 psi (230 kg/cm²) |
| Hydraulic Tank Capacity | 4.2 gal (16.0 L) |
| Dimensions | |
| Operating Weight | 7,099–7,319 lbs (3,220–3,320 kg) |
| Overall Length (with bucket) | 135.4 in (3,439 mm) |
| Overall Length (without bucket) | 106.3 in (2,700 mm) |
| Overall Width (over wheels) | 66.5 in (1,689 mm) |
| Overall Width (with standard bucket) | 69 in (1,753 mm) |
| Overall Height | 79.9 in (2,029 mm) |
| Ground Clearance | 7.6 in (193 mm) |
| Height to Hinge Pin | 121.5 in (3,085 mm) |
| Reach at Max Height | 32.7 in (831 mm) |
| Drive & Tires | |
| Travel Speed (Low) | 6.9 mph (11.1 km/h) |
| Travel Speed (High) | 11.1 mph (17.8 km/h) |
| Tire Size | 10-16.5-8PR |
| Chain Size | ASA #80 |
| Capacities | |
| Fuel Tank Capacity | 25.4 gal (96.0 L) |
| Hydraulic Tank Capacity | 4.2 gal (16.0 L) |

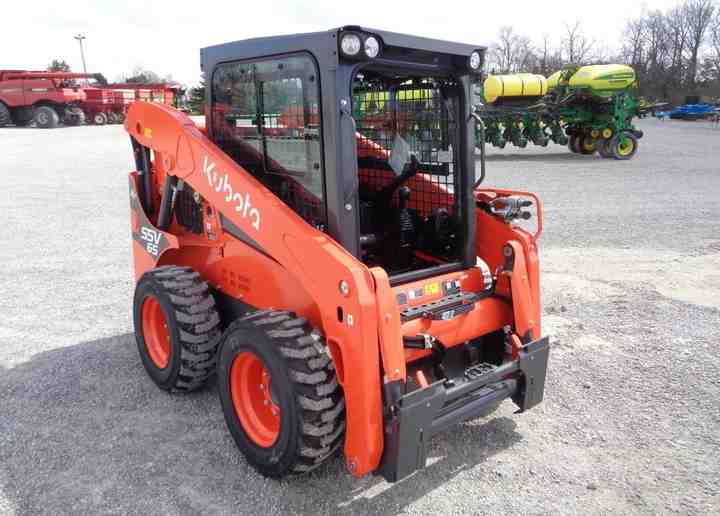

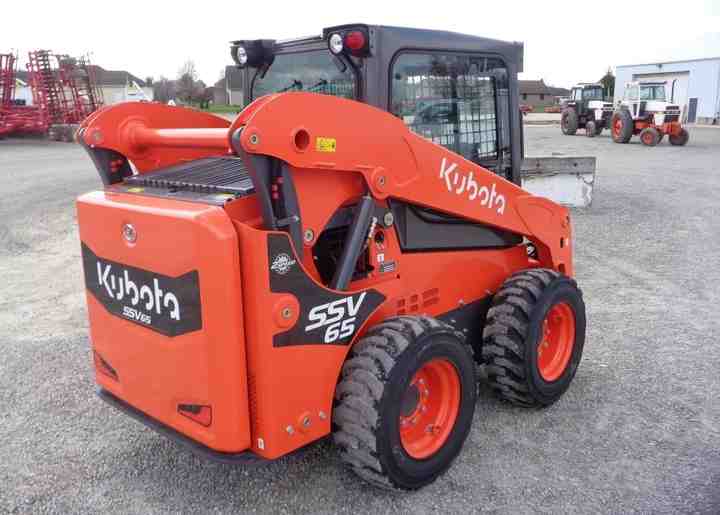

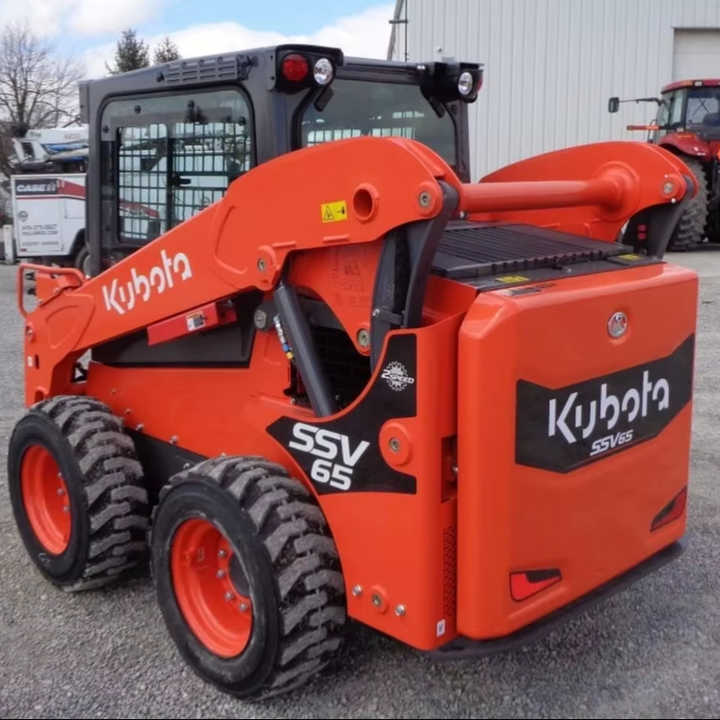

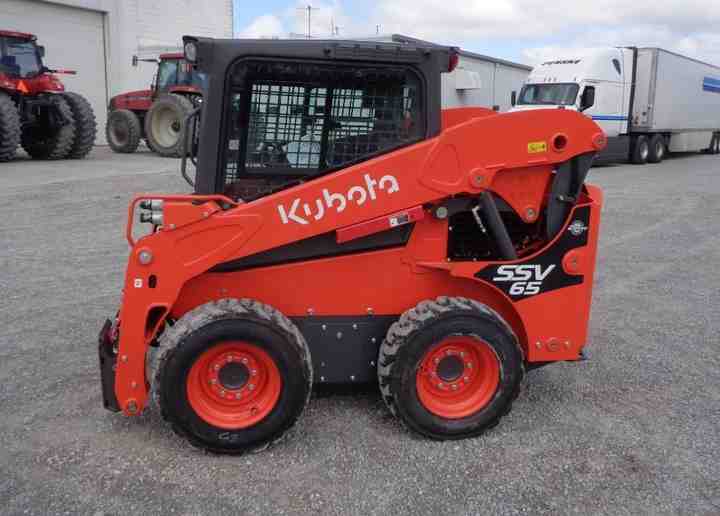

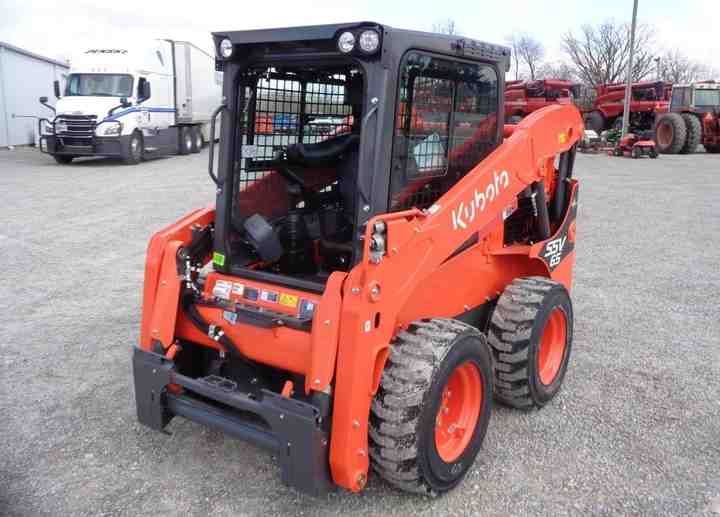

2025 Kubota SSV65 Mini Loader 2-4 Ton Skid Steer Wheel Loader Mini Crawler Loader Core Motor Engine Bearing Pump Gearbox Gear
