| Category | Specification |
|---|---|
| Engine | |
| Model | V3307-CR-TE4 |
| Emission Certification | Tier 4 |
| Gross Horsepower | 74.3 HP (55.4 kW) |
| Net Horsepower | 71.6 HP (53.4 kW) |
| Displacement | 203.3 cu in (3331 cc) |
| Cylinders | 4 |
| Bore x Stroke | 3.8 in × 4.8 in (94 mm × 120 mm) |
| Aspiration | Turbocharged |
| Rated Speed | 2600 RPM |
| Low Idling Speed | 1250 RPM |
| Peak Torque | 192 ft-lb (260.3 N·m) |
| Compression Ratio | 15.6:1 |
| Firing Order | 1-3-4-2 |
| Performance | |
| Rated Operating Capacity | 2690 lbs (1220 kg) |
| Tipping Load | 5380 lbs (2440 kg) |
| Bucket Breakout Force | 5884 lbf (2669 kgf) |
| Lift Arm Breakout Force | 4850 lbf (2200 kgf) |
| Traction Force | 8494 lbs (3853 kg) |
| Lift Arm Path | Vertical |
| Hydraulics | |
| Standard Hydraulic Flow | 20.9 GPM (79.0 LPM) |
| High Flow Option | 30.4 GPM (115.0 LPM) |
| Hydraulic Pressure | 3271 psi (225.5 bar) |
| Hydraulic Tank Capacity | 4.2 gal (16.0 L) |
| Hydraulic System Capacity | 9.25 gal (35 L) |
| Capacities | |
| Fuel Tank | 26.9 gal (102.0 L) |
| Engine Oil Capacity | 3.1 gal (11.8 L) |
| Coolant Capacity | 3.7 gal (14.0 L) |
| Radiator | 1.8 gal (6.8 L) |
| Cooling Fluid Recovery Tank | 0.5 gal (2.0 L) |
| Battery Capacity | 12V RC: 160 min, CCA: 900A |
| Dimensions & Weight | |
| Operating Weight | 8245–8466 lbs (3740–3840 kg) |
| Overall Height | 81.3 in (2065 mm) |
| Overall Width | 71.8 in (1823 mm) over wheels; 75 in (1905 mm) with standard bucket |
| Overall Length | 115.0 in (2920 mm) without bucket; 144.1 in (3660 mm) with bucket |
| Height to Hinge Pin | 128.3 in (3258 mm) |
| Reach at Max Height | 36.9 in (936 mm) |
| Dump Height | 98.0 in (2490 mm) |
| Dump Reach | 36.9 in (936 mm) |
| Ground Clearance | 8.1 in (207 mm) |
| Dump Angle | 43° |
| Rollback Angle | 27° |
| Departure Angle | 25° |
| Wheelbase | 44.3 in (1125 mm) |
| Turning Radius (rear) | 53.7 in (1364 mm) |
| Drive & Tires | |
| Travel Speed (Low/High) | 7.4 mph (11.9 km/h) / 11.8 mph (19.0 km/h) |
| Tire Size | 12-16.5-10PR |

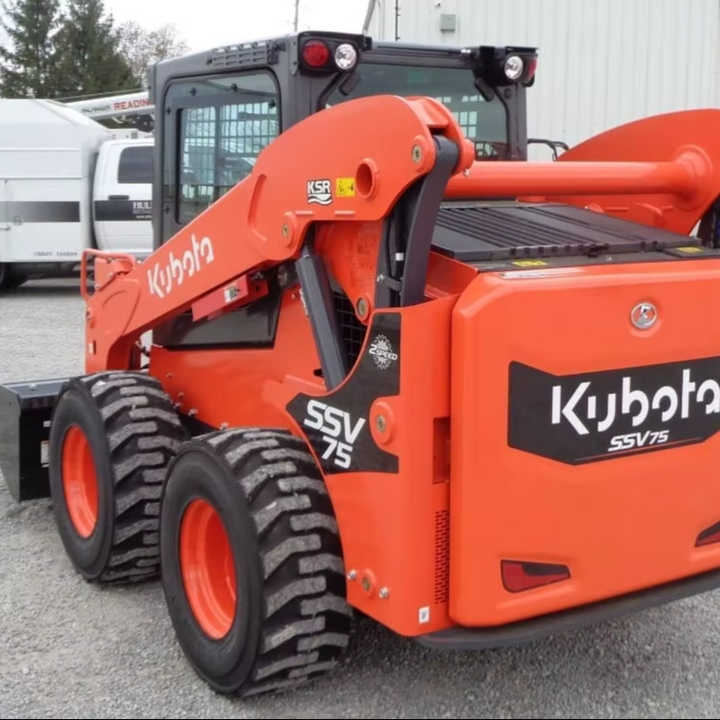

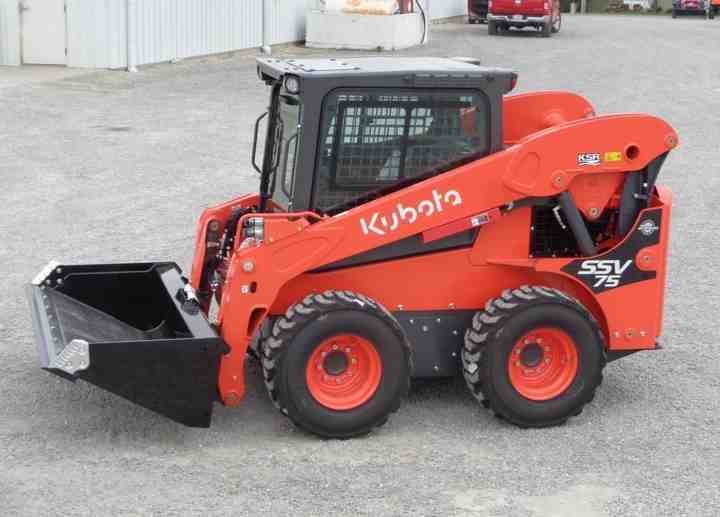

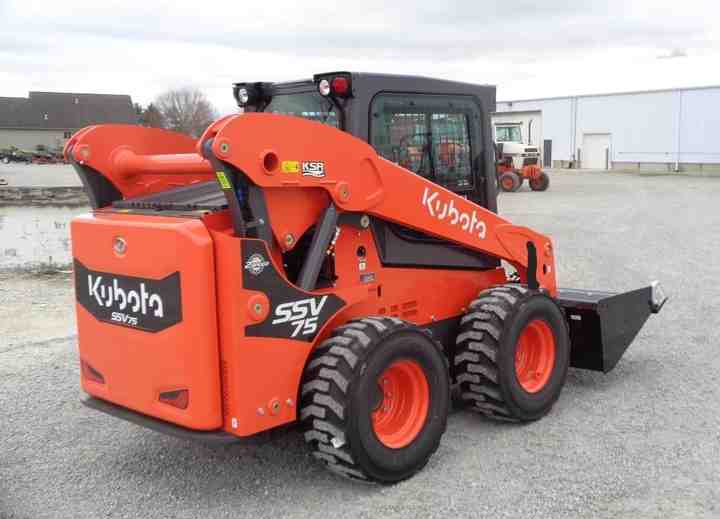

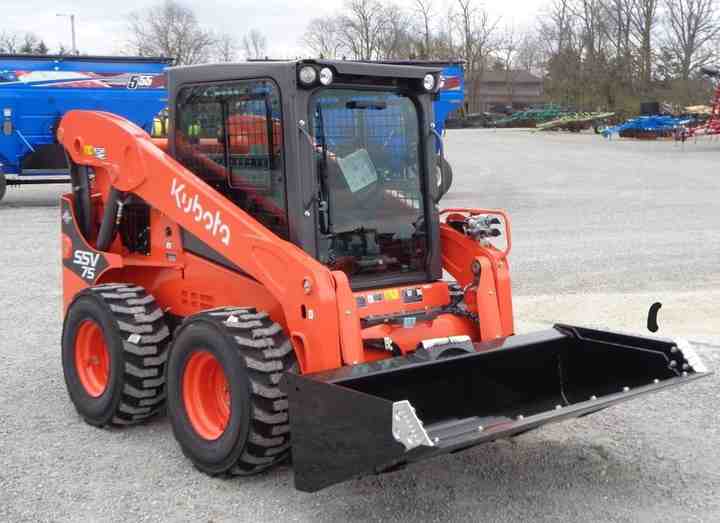

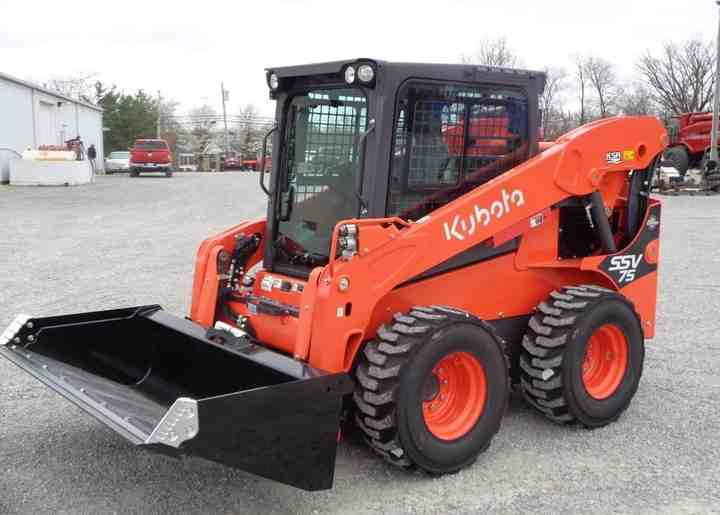

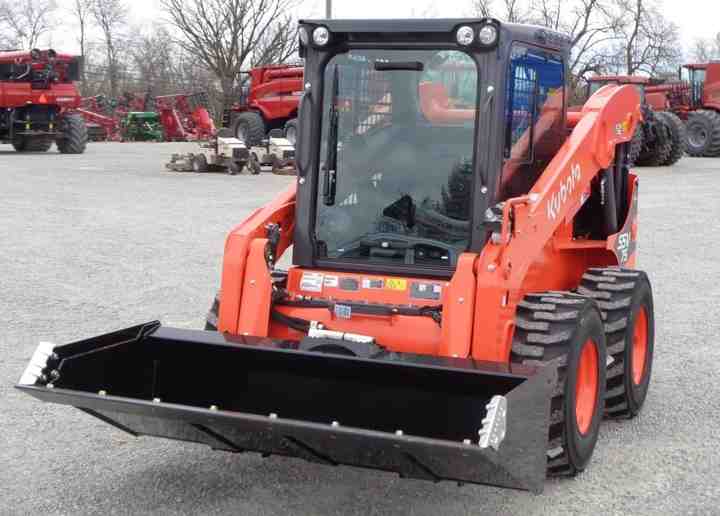

2025 Kubota SSV75 Skid Steer Loader Mini Crawler Dumper with 4×4 Wheel Drive and Bucket Attachment Used 1-5 Ton Rated Load
