| Category | Specification |
|---|---|
| Engine | |
| Manufacturer | Isuzu |
| Model | 4HK1X |
| Power Output | 128 kW (172 HP) @ 2000 rpm |
| Displacement | 5.193 liters |
| Torque | 670 Nm @ 1600 rpm |
| Emission Standard | Euro V / Tier 4 Final |
| Hydraulic System | |
| Main Pump Flow | 2 × 233 L/min |
| Pilot Pump Flow | 20 L/min |
| Operating Pressure | 350 bar (standard), 370 bar (boost) |
| Swing Pressure | 306 bar |
| Pilot Pressure | 40 bar |
| Performance | |
| Bucket Capacity | 1.1 m³ (standard), up to 1.2 m³ (optional) |
| Digging Depth | 6.73 m |
| Maximum Reach | 9.81 m |
| Dump Height | 6.95 m |
| Bucket Breakout Force | 15,800 kgf |
| Arm Tear-out Force | 10,000 kgf |
| Swing Speed | 11.9 rpm |
| Travel Speed | 3.8 – 5.8 km/h |
| Dimensions | |
| Operating Weight | 23,650 kg |
| Transport Length | 9.74 m |
| Transport Width | 2.99 m |
| Transport Height | 3.01 – 3.33 m |
| Undercarriage Length | 4.46 m |
| Track Width | 600 mm |
| Boom Length | 5.7 m (monobloc) or 5.6 m (variable) |
| Arm Length | 2.4 m or 2.92 m |
| Cabin & Features | |
| Air Conditioning | Yes |
| Heated Air Suspension Seat | Yes |
| Quick Coupler (Hydraulic & Mechanical) | Yes |
| Overload Alert System | Yes |
| Diesel Particulate Filter (DPF) | Yes |
| Material Handling Ready | Yes |
| Additional Hydraulics | For hammer, shear, rotator, and clamshell attachments |

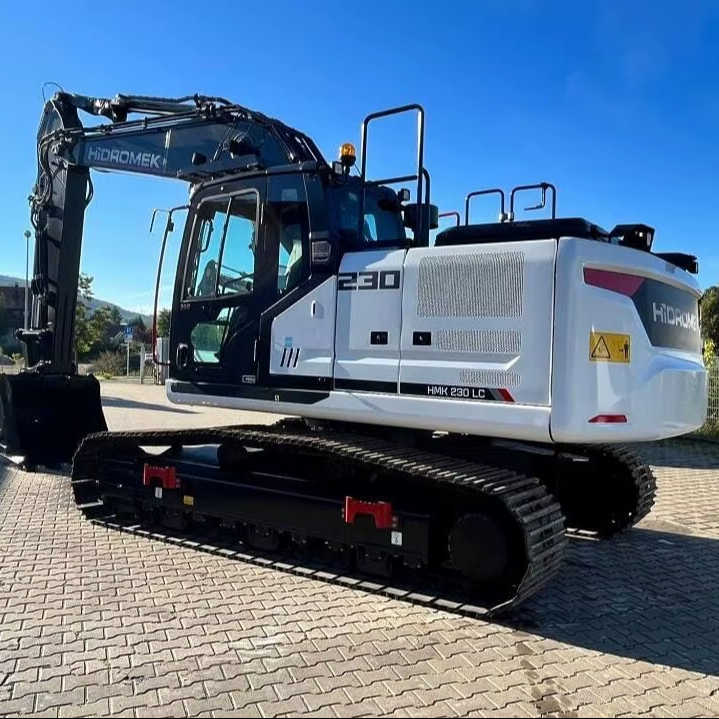

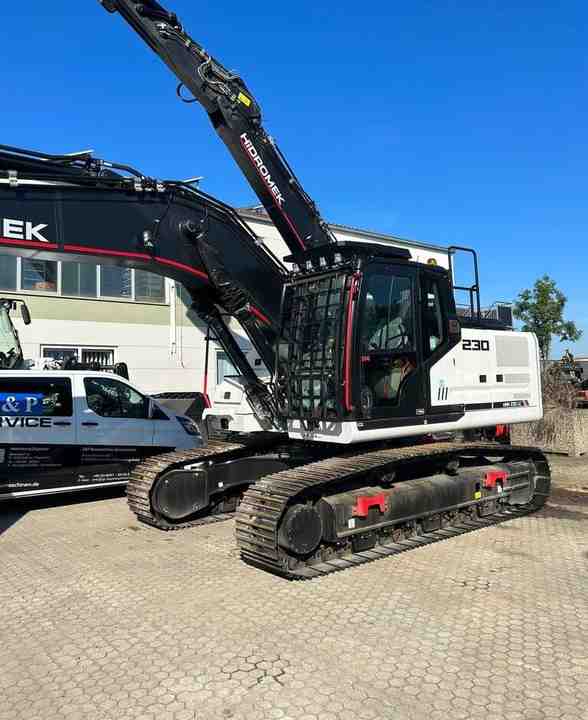

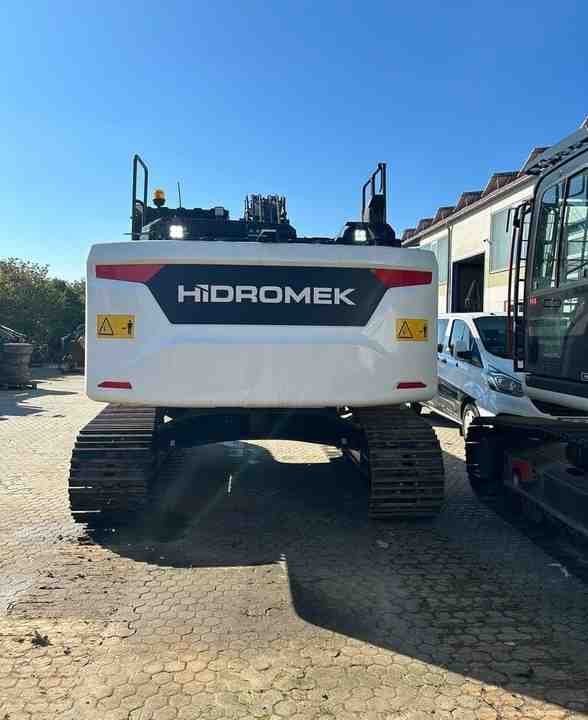

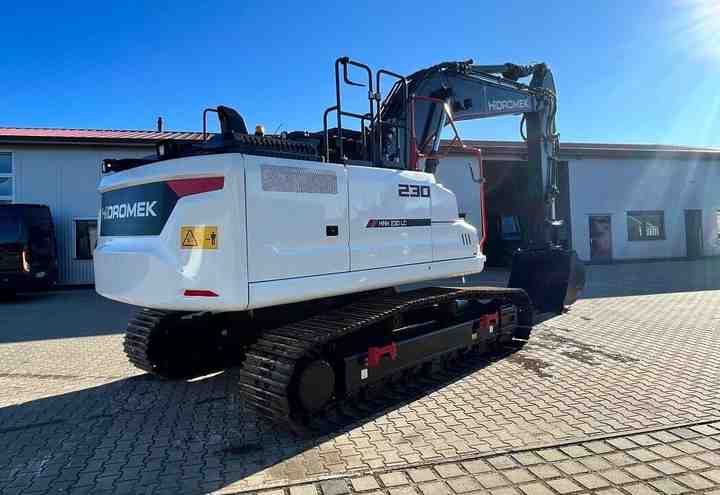

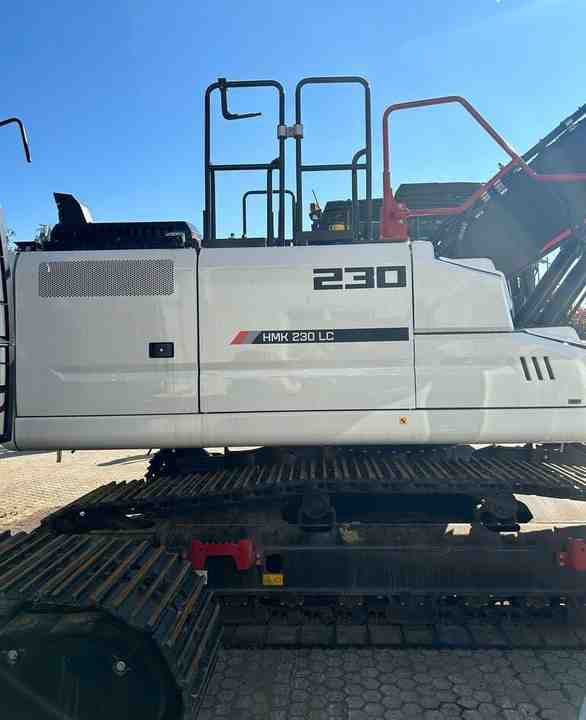

Hidromek HMK 230 LC-H4 Tracked Excavator with Isuzu Engine Eaton Hydraulic Cylinder Core Components Gear Pump Motor Gear Bearing
