| Category | Specification |
|---|---|
| Engine | |
| Model | Kubota D1005-E4-D21 |
| Type | 3-cylinder, liquid-cooled diesel |
| Gross Horsepower | 23.0 HP (17.2 kW) |
| PTO Horsepower | 17.5 HP (13.0 kW) |
| Displacement | 1.001 L (61.1 cu. in.) |
| Rated RPM | 2,800 RPM |
| Fuel Tank Capacity | 25 liters (6.6 U.S. gallons) |
| Transmission | |
| Type | Hydrostatic (HST) |
| Gears | Infinite (3-range forward and reverse) |
| Cruise Control | Standard |
| PTO (Power Take-Off) | |
| Type | Independent |
| Rear PTO | Standard |
| Mid PTO | Optional |
| Rear PTO Speed | 540 RPM |
| Mid PTO Speed | 2,500 RPM |
| Hydraulics | |
| Type | Open center |
| Pump Output | 23.5 L/min (6.2 GPM) |

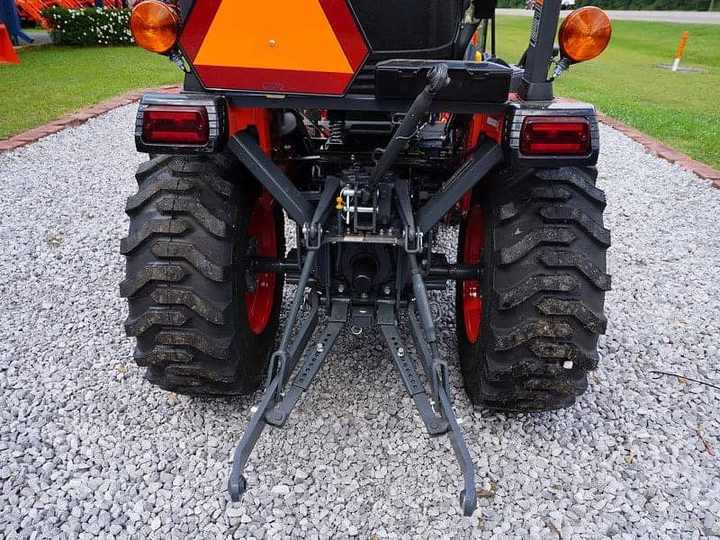

| 3-Point Hitch | Category I |
| Lift Capacity at 24″ | 615 kg (1,356 lbs) |
| Dimensions | |
| Overall Length | 2,410 mm (94.9 in.) |
| Overall Width | 1,200 mm (47.2 in.) |
| Overall Height | 2,130 mm (83.9 in.) |
| Wheelbase | 1,560 mm (61.4 in.) |
| Ground Clearance | 260 mm (10.2 in.) |
| Turning Radius | 2.1 m (6.9 ft) with brake |
| Weight | 700 kg (1,543 lbs) |
| Tires | |
| Front | 6-12 (AG), 20×8.00-10 (Turf), 23×8.50-12 (Industrial) |
| Rear | 9.5-16 (AG), 29×12.00-15 (Turf), 12.4-16 (Industrial) |
