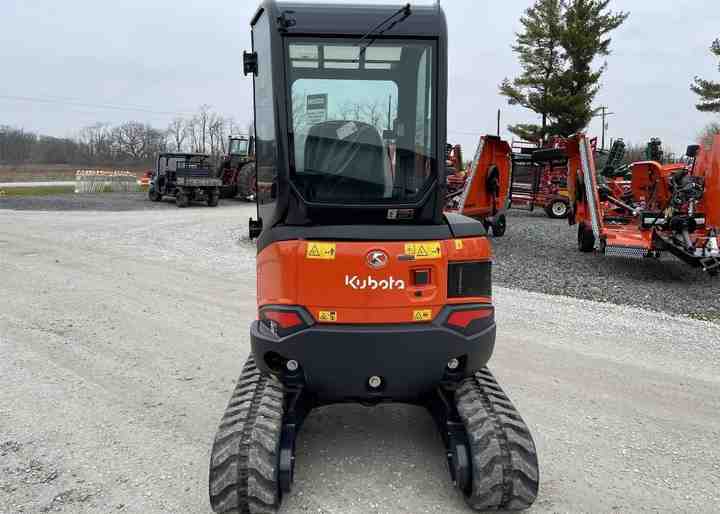

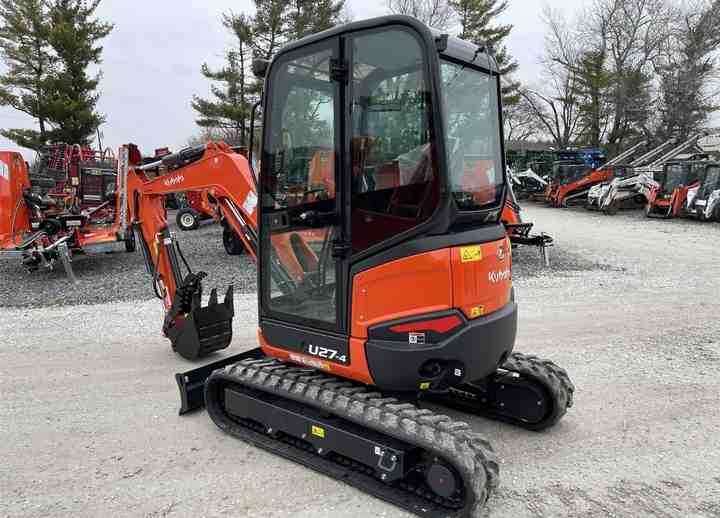

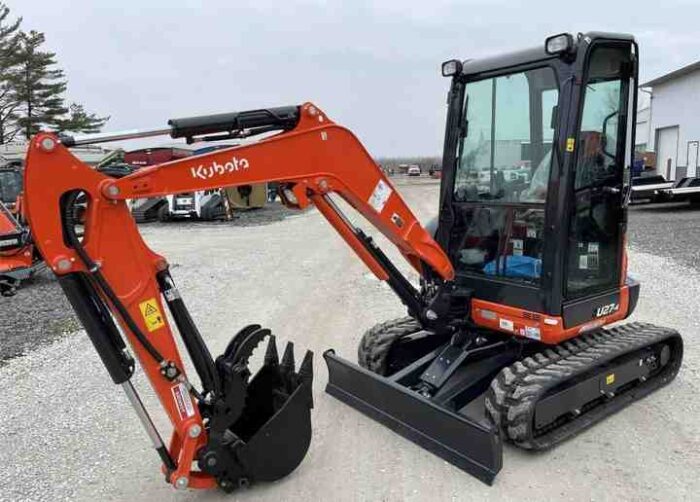

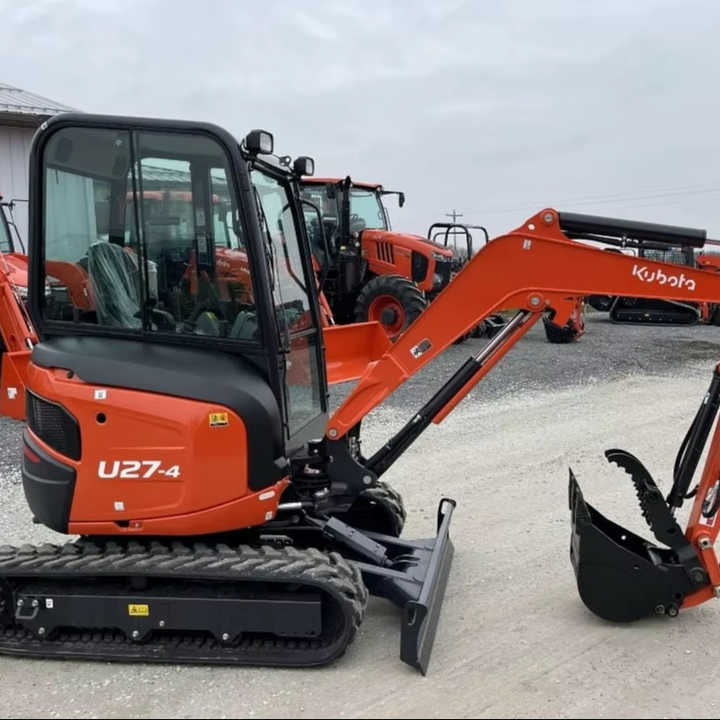

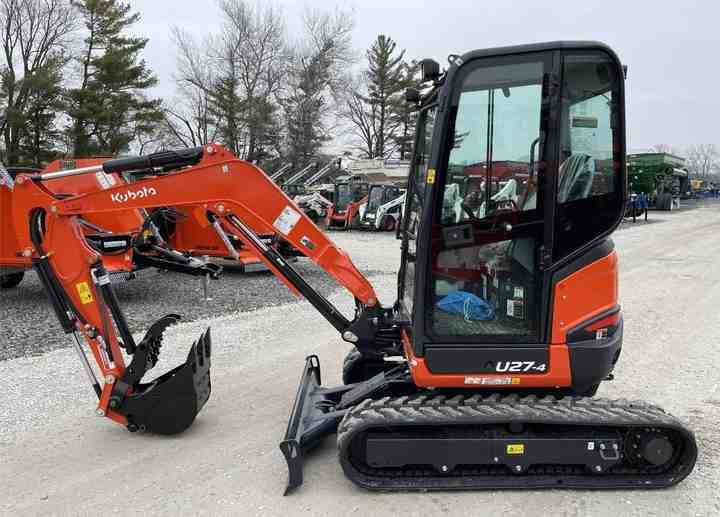

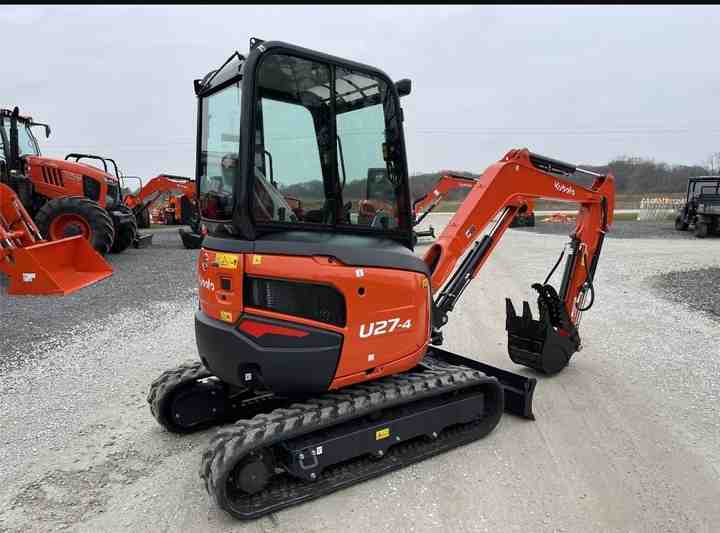

Kubota U27-4 Mini Excavator

Category	Specification
Engine
Model	Kubota D1105-BH
Type	3-cylinder, water-cooled, diesel, E-TVCS
Displacement	1,123 cc
Rated Output (Net)	14.9 kW (20 HP) @ 2,400 rpm
Emissions Compliance	EU Stage V / Tier 4 Final
Performance
Max Digging Depth	2.82 m (9 ft 3 in)
Max Digging Height	4.37 m (14 ft 4 in)
Max Digging Radius	4.74 m (15 ft 7 in)
Max Dumping Height	3.10 m (10 ft 2 in)
Max Digging Force (Bucket)	21.0 kN (2,140 kgf)
Max Digging Force (Arm)	12.3 kN (1,260 kgf)
Hydraulics
Pump Capacity	28.8 l/min x 2 (variable) + 19.2 l/min (gear)
Auxiliary Flow (AUX1)	48 l/min @ 175 kgf/cm²
Auxiliary Flow (AUX2)	19.2 l/min @ 175 kgf/cm²
Travel & Swing
Travel Speed (Low/High)	2.5 / 4.5 km/h (1.6 / 2.8 mph)
Swing Speed	9.8 rpm
Boom Swing Angle	75° (left) / 55° (right)
Dimensions
Overall Length	4.19 m (13 ft 9 in)
Overall Width	1.50 m (4 ft 11 in)
Overall Height (Cabin)	2.43 m (7 ft 11 in)
Ground Clearance	0.29 m (11.4 in)
Tumbler Distance	1.56 m (5 ft 1 in)
Crawler Length	1.99 m (6 ft 6 in)
Operating Weight
With Cabin	2,590 kg (5,710 lbs)
With Canopy	2,490 kg (5,490 lbs)
Blade
Width x Height	1.50 m x 0.30 m (59 in x 11.8 in)
Max Lift Above Ground	0.36 m (14.2 in)
Max Drop Below Ground	0.32 m (12.6 in)
Fluid Capacities
Fuel Tank	33 liters (8.7 gal)
Hydraulic Reservoir	22 liters (5.8 gal)
Hydraulic System	37 liters (9.7 gal)
