| Category | Specification |
|---|---|
| Engine | |
| Engine Model | SHDEC / Yuchai |
| Engine Type | 4-cylinder, 4.0L Turbocharged Diesel |
| Gross Power | 100 hp (73.5 kW) |
| PTO Power | 66.1 kW |
| Rated Speed | 2200 rpm |
| Fuel Tank Capacity | 230 L |
| Transmission | |
| Gearbox | 16F + 8R or 10F + 10R |
| Clutch | Dry, Dual Stage (12-inch ceramic and fiber plates) |
| Differential | Mechanical gear with rear diff lock |
| Drive System | |
| Drive Type | 4WD (Front Wheel Assist) |
| Front Axle | Planetary gear set floating hubs |
| Rear Axle | Heavy-duty design with larger planetary gear sets |
| Hydraulics & PTO | |
| Implement Flow Rate | 41 L/min |
| Steering Flow Rate | 12 L/min |
| Rear Remotes | 2 or 3 pairs |
| PTO Speeds | 540/1000 rpm |
| Rated PTO Power | 88.64 hp |

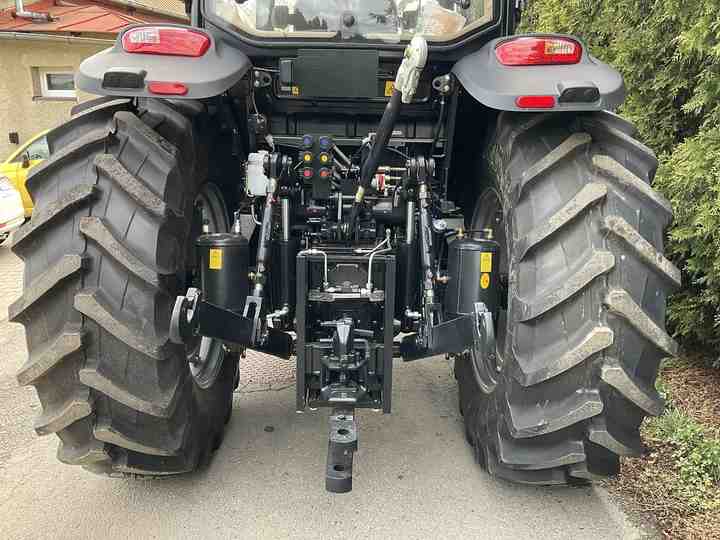

| 3-Point Linkage | |
| Category | II |
| Lift Capacity | 2000 kg @ 610 mm behind hitch point |
| Features | Adjustable side links, Down force on rear linkage |
| Dimensions & Weight | |
| Overall Dimensions (L×W×H) | 4580 mm × 2030 mm × 3000 mm |
| Wheelbase | 2582 mm |
| Ground Clearance | 450 mm |
| Operating Weight | 3900 kg |
| Wheels & Tires | |
| Front Tires | 11.2R24 or 12.4-24 |
| Rear Tires | 16.9R34 |
| Rear Wheel Weights | Total 344 kg |

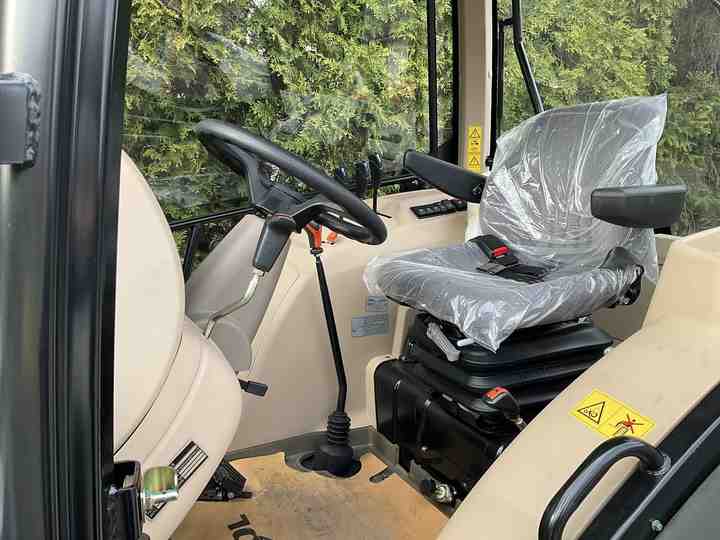

| Cabin & Controls | |
| Cabin Features | Spacious cabin with ergonomic seating, air conditioning, and radio with USB charger |
| Controls | Standard layout with gear sticks on the right side, FEL joystick with push-button 3rd function |
| Front End Loader | |
| Bucket | 4-in-1 with front teeth |
| Mount | Euro Mount hitch |
| Lift Capacity | 900 kg Safe Working Load, 1200 kg Max Lift Recommended |
| Features | Self-leveling lift design, quick release couplers, parking stands, safety locks |
