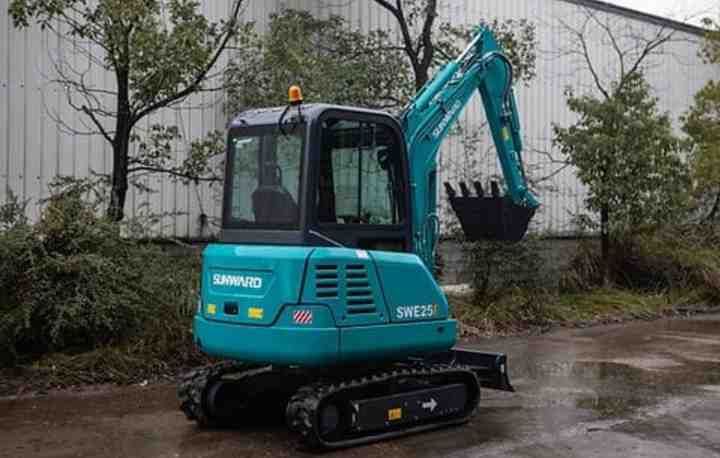

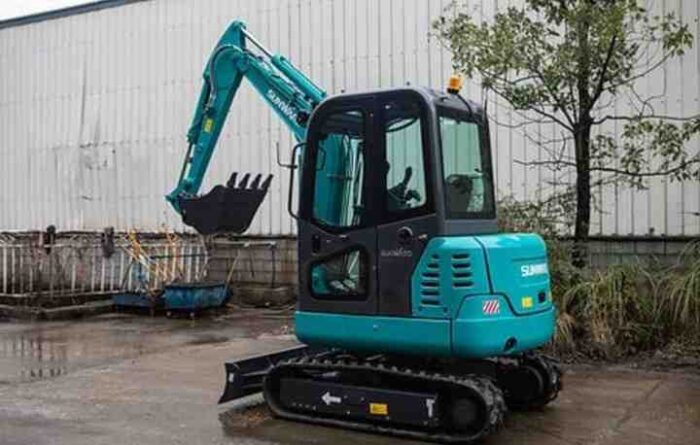

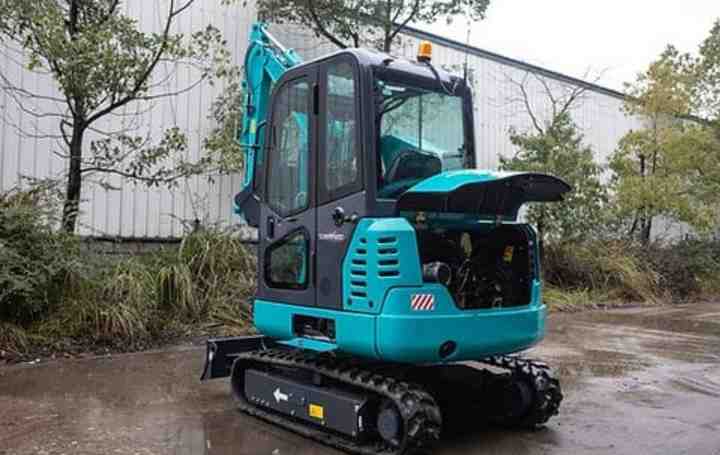

Sunward SWE 25F Mini Excavator

Category	Specification
Engine
Model	Yanmar 3TNV80F-SPSU
Emission Standard	EU Stage V
Displacement	1.267 L
Rated Power Output	14.6 kW @ 2400 rpm
Performance
Max Digging Depth	2.705 m
Max Digging Height	4.445 m
Max Digging Radius	4.845 m
Max Loading Height	3.110 m
Max Vertical Wall Digging Depth	2.745 m
Max Bucket Digging Force	24 kN
Max Arm Digging Force	14 kN
Travel Speed	2.6 km/h (Low) / 4.4 km/h (High)
Swing Speed	10 rpm
Gradeability	30°
Ground Pressure	25 kPa
Bucket
Capacity	0.08 m³
Width	580 mm
Dimensions & Weight
Operating Weight	2,640 kg
Overall Length	4,262 mm
Overall Width	1,500 mm
Overall Height	2,400 mm
Ground Clearance	280 mm
Tail Swing Radius	1,050 mm
Front Swing Radius	2,143 mm
Undercarriage
Track Type	Rubber/Steel
Track Width	300 mm
Track Length	1,990 mm
Length to Center of Rollers	1,560 mm
Hydraulic System
Main Pumps	2 variable displacement pumps, 1 gear pump
Pump Capacity	2 × 28.8 + 19.2 + 6.5 L/min
Working Pressure	2 × 23.5 + 19 MPa
Capacities
Fuel Tank	42.5 L
Hydraulic Oil Tank	30 L
Blade (Dozer)
Width × Height	1,500 mm × 325 mm
Max Lifting Height	330 mm
Max Cutting Depth	320 mm
